A DMZ (demilitarized zone) is a segmented part of a network that is used to host all publicly accessible websites and services. The intention is to protect the internal network from external threats. It is an effective strategy to minimize public exposure of your critical assets as well as limit the damage caused when an intruder is able to penetrate your network. A great definition of a DMZ can be found here.
I received feedback from a visitor of this site who noticed in my screenshots that I have a “DMZ” interface and wanted to know how I created a DMZ network. I thought that would be a great topic to cover. While researching DMZ implementations when writing this how-to, I came across a nice write-up on implementing a basic DMZ as well as implementing a more advanced and secure DMZ (for another good reference, click here). The basic DMZ example is pretty much the approach that I took in my home network – partially due to inexperience and partially due to minimizing expense on purchasing additional hardware. I am limiting the scope of this how-to to the basic DMZ example since I imagine many home network users will be using a single router/firewall to manage multiple logical/physical networks.
The basic DMZ implementation is a more budget friendly and easier to implement option due to requiring less hardware/software to purchase, configure, and maintain. However, the trade off is less security. By less security, I mean someone has to compromise your router/firewall box to the extent that they have full visibility into all your networks including the internal, private networks. If that type of compromise occurs, you already have big problems. Depending on the quality of your router/firewall, this may or may not be an easy task for an attacker. You are basically putting all of your eggs in one basket with this approach. For a home network user, I do not think this fact alone should sway you away from using a single router/firewall for your network. It is still a lot more secure than using a single network and exposing various ports on a server to the Internet using a standard consumer-grade router that receives little to no security updates.
The advanced DMZ implementation mitigates the issue of compromise of your internal, private networks more effectively since the attacker would have to compromise the second firewall or perhaps a device behind the second firewall before further penetration of your network could occur. The devices behind the second firewall would be practically invisible to the DMZ network especially if all traffic from the DMZ network is dropped between the DMZ and your internal network(s). (It is important to note that you can also drop traffic between the DMZ and your internal network(s) with the basic DMZ approach, but if your only router/firewall is compromised, the attacker is much more likely to snoop on traffic or attempt to compromise devices on your internal network since the attacker can see all of your configured networks, interfaces, devices, and firewall rules.).
Two Approaches of Implementing a Basic DMZ
There are at least two approaches you may consider when implementing a basic DMZ using a single router/firewall. I imagine there are other approaches, but I am limiting this discussion to two slightly different approaches. If your router/firewall has more than one Ethernet port, you may put devices or network switches on separate physical ports. The two physical ports can be configured to be on separate physical networks/subnets. Some benefits to this approach is that you do not need to know how to configure VLANs or have hardware that supports VLANs so the configuration is simple. Also, you could alleviate some potential bottlenecks since less ports are shared as compared to VLANs where the trunk ports may transport traffic for several networks over the same link. However, this can be mitigated in various ways (as mentioned below). A few negative aspects of using two separate physical networks are that you need to purchase more physical switches for each network you are creating (unless perhaps you could make use of port isolation on a single switch but that could get messy/confusing), and the devices that are on the same network need to utilize the same network switch. If your network switches are physically distant, running cables could become an issue especially if you need to change the network of a device – you would need to run a new cable to a different network switch in another location. This is one reason why VLANs were created since you have the flexibility to have devices located anywhere but exist on the same networks using any switch that has the proper VLAN configuration.
If you are only using one port on your router/firewall (a “router on a stick” configuration), you can create a DMZ using VLANs. When you create VLANs, you are creating separate logical networks that can share the same existing physical ports. The flexibility of VLANs offers many benefits including saving costs on network hardware. You do not need to buy a new switch every time you want to create a new network. Also your virtual networks can span across different switches, which is very nice. You do not have to run all your cabling to the same switch for the same network. You can connect them to the nearest switch instead. Keep in mind that the potential downside is that you could create bottlenecks if you have a lot of traffic flowing through a single link. You can improve the situation by using link aggregation (LAG) or using a larger bandwidth trunk port (such as a 10 Gbps link).
Note: You can still use VLANs and also multiple ports on your router/firewall, but it is the same as the logical/VLAN approach except you are using VLANs across multiple ports on the router/firewall. This could help alleviate some bottlenecks without using link aggregation but link aggregation would still be better if you have high bandwidth needs.
Below are diagrams of the two approaches:
Physical Network Approach
By default, OPNsense will setup a WAN and LAN interface if it detects your network appliance has more than one Ethernet port. For simplicity, I am going to assume you already have the default interfaces configured. You will need to create an additional interface for the DMZ network. You will need to have a 3rd Ethernet port available in order to create another physical network. This physical network example uses 3 ports: 1 for the WAN, 1 for the LAN, and 1 for the DMZ network.
Assign DMZ Interface
To assign a new interface for the DMZ network, go to the “Interfaces > Assignments” page. At the bottom of the page you will see the “New interface” section.
Select the appropriate physical port from the dropdown box. In my example, I chose “igb2” which is the third Ethernet port since the numbering starts with zero. The interface “igb2” could be different for you depending on your hardware configuration. Enter a “Description” for the interface. This will show up in the left sidebar panel. Then click the “+” button to assign the interface.
Logical Network Approach
If you are implementing the logical/VLAN approach, there is an extra step you must take when assigning an interface. You must first create a VLAN interface before you can assign it.
Create VLAN Interface

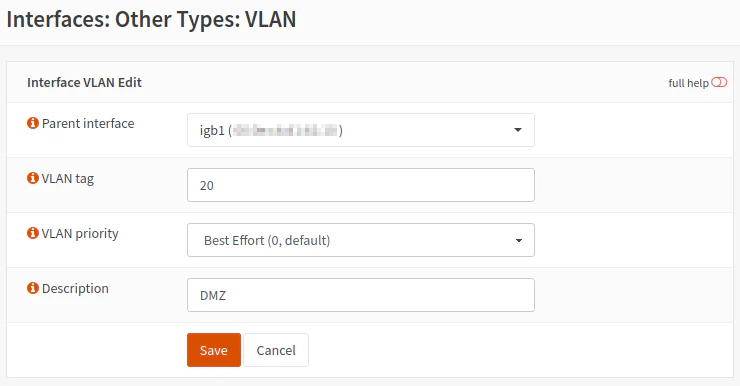

To create a VLAN interface, go to the “Interfaces > Other Types > VLAN” page. Click the “Add” button to open the VLAN interface page.
Select the parent interface which you want to create the VLAN interface. This interface is the physical Ethernet port you want to use the VLAN. You may create multiple VLANs on the same parent/physical port. VLANs allow you to create many logical networks that exist on a single physical network. In my example, I used the “igb1” interface which is the second Ethernet port. For this logical network example, you only need 2 ports: 1 for the WAN and 1 for the LAN/DMZ networks. The LAN and DMZ networks will share the second port.
Please note that I am assuming that you already have the default WAN/LAN interface configured so the LAN should already be created on the “igb1” interface. The “igb1” interface could be different depending on your hardware Ethernet port assignments.
Enter a VLAN tag number. I typically like to use the same number as the subnet for the VLAN but you do not have to use that convention. In my example, I am using the 192.168.20.0 network for the DMZ so I chose “20” as the VLAN tag. You can choose a “VLAN priority” for the network traffic which may be useful if you have a congested network. It probably does not help much otherwise. Perhaps for a live streaming/VOIP application, it may be more important to use the VLAN priority. Enter a “Description” for the VLAN interface. This name will be visible when making the interface assignment so name it something useful. I like to name the VLAN the same as the assigned interface name so it is easier to match up VLANs to interfaces. It also makes the VLAN configuration appear more consistent throughout the web interface. Click “Save” to save the VLAN interface configuration.
Assign DMZ VLAN Interface
The assignment of the logical/VLAN interface is very similar to the physical interface except that you select your DMZ VLAN interface instead of the physical interface in the dropdown box.
Configure VLANs on the Network Switch
When you take the logical network/VLAN approach, you will need to configure VLANs on your network switch with the same VLAN ID/tag. In our example, the DMZ uses the VLAN ID/tag of 20. Due to the number of switches on the market and the differences on how to configure VLANs, I will not describe it in detail, but I wanted to mention that you must configure VLANs on your network switch for this approach to function properly. This is another reason why I mentioned that setting up two physical networks is less complex. You can use basic unmanaged switches for the physical networks, but for logical networks using VLANs, you must use VLAN-aware switches.
One important step with creating VLANs on your switch is to set the port on the switch where your router is connected to a tagged/trunk port so that it can carry all of the VLAN traffic. In OPNsense, you do not need to worry about setting the router port where the switch is connected to a tagged/trunk port since OPNsense knows how to do this properly with your VLAN interfaces.
Common Steps for Both Approaches
Once the DMZ interface has been assigned, the remaining steps are the same. A physical and logical interface is treated the same. Even the assignment of the interfaces is very similar, but I thought it was important to explain the step separately to provide a clear explanation for both approaches since the logical network/VLAN approach requires an extra step before assigning the interface. Not only is the rest of the interface creation the same, but the firewall rules are also the same for both approaches! The DMZ interface is referenced in the firewall rules the same way for a physical and a logical network.
Configure and Enable DMZ Interface
Once the DMZ interface is assigned, it will be listed under the “Interfaces” sidebar menu. Click on the “[DMZ]” interface to configure the interface.

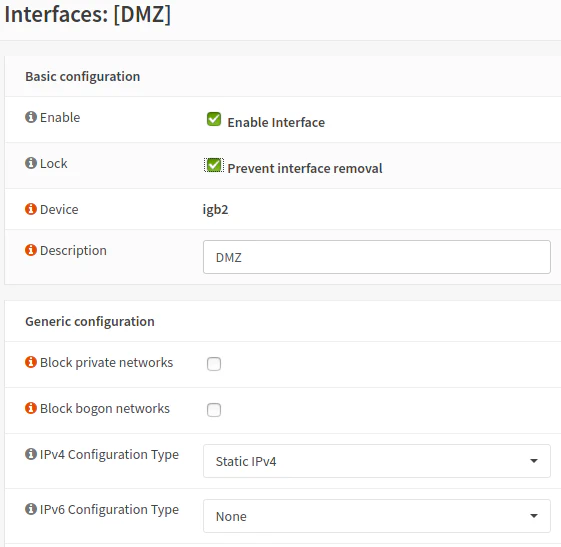

Click the “Enable Interface” and “Prevent interface removal” checkboxes. The “Prevent interface removal” option prevents you from deleting the interface from the “Assignments” page. It can be a useful safeguard so you do not accidentally mess up network configuration in a very bad way. You may notice on the logical/VLAN interface that the device name is slightly different than the screenshot. It will show “igb2_vlan20” instead of “igb2” which is ok because that indicates a VLAN interface is being used instead of a physical interface. I did not want to bother with 2 different screenshots when the device name is the only slight difference. The “Description” should already be filled with “DMZ” since you added it when you assigned the interface. Next, select “Static IPv4” for the “IPv4 Configuration Type”. You may also enable IPv6 as well, but for simplicity, I am only showing IPv4.
If you scroll down farther on the same page, you should see the IPv4 configuration now that you have selected the “Static IPv4” configuration type.
Enter the IP address of the interface itself, which is 192.168.20.1 in this example. To indicate the range of network addresses on the interface, select “24” in the dropdown box to indicate this is /24 network with the address range of 192.168.20.0-192.168.20.255 (where the usable addresses are 192.168.20.1-192.168.20.254). Finally, click the “Save” button to save the interface changes. You will also need to click “Apply changes” button at the top of the page to activate the changes.
Enable DHCP on DMZ Interface
Many users will want to enable DHCP to assign addresses so it does not have to be done manually on each individual device on the network. Go to the “Services > DHCPv4 > [DMZ]” page to configure DHCP for the DMZ network.

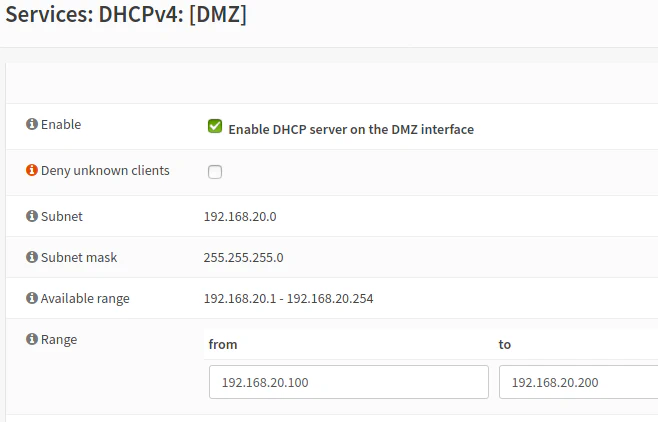

Click the “Enable DHCP server on the DMZ interface” checkbox. Then enter “192.168.20.100” in the “from” box and “192.168.20.200” in the “to” box. You may choose different ranges. If you plan to have some static IP addresses, you should leave some room for those. You have to make sure your static IP addresses do not overlap the DHCP address range because IP address conflicts could occur. Also, do not start your range at “192.168.20.1” since that is the DMZ interface address and will act as the gateway IP address for devices on the DMZ network. Click the “Save” button to save and enable DHCP for the DMZ network.
Create Static DHCP Leases (Optional)
If you are running server(s) and hosting various services, you will likely want to use static IP addresses so that you can use port forwarding and add appropriate firewall rules. I prefer to use DHCP static mappings rather than go to each device and manually configure the IP address settings. It allows you to manage all static IP addresses from a centralized management interface. You can add a new static DHCP lease from the “Services > DHCPv4 > [DMZ]” page, but I prefer to go to the “Services > DHCPv4 > Leases” page. The reason I prefer the “Leases” page is that there is a “+” button you can use to add a new static DHCP lease and it will prepopulate the MAC address on the “Static DHCP Mapping” page. You have to go to the “Leases” page anyway to copy the MAC address (or go to the device itself to find the MAC address to type in) so it makes sense to add a new static lease from the “Leases” page. It is a handy shortcut you may use.

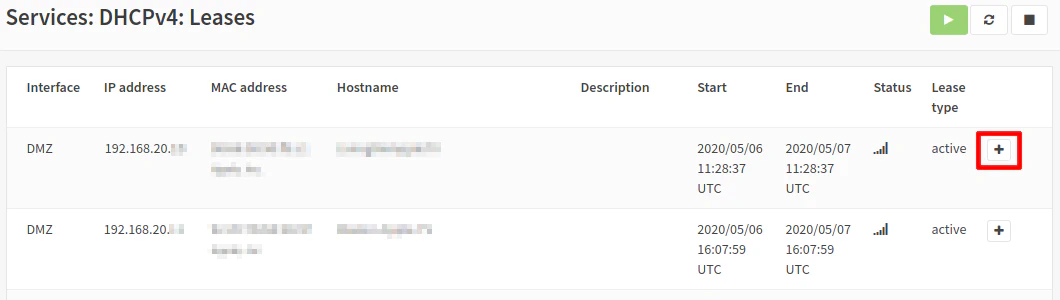

With that said, click on the “+” button for the device you want to create a static DHCP mapping.
The “Static DHCP Mapping” page will then open with the MAC address prepopulated.
Enter the “IP address” for the server/device and then the “Hostname” for the device. You may be much more creative with the hostname than my example. The hostname entered will actually override the hostname that is set on the system so keep that in mind. If you like the hostname configured on your server, just enter the same hostname so that you can refer your server from other devices on the network by the name you prefer. The fact that the hostname can be overridden can be helpful if there are devices on your network which do not seem to allow you to change their default hostname. If you are OCD or need to refer to the device easier than some randomly generated name, you can use static DHCP mappings to clean up those hostnames (but it also means they now will have a static IP address, which should not normally be an issue).
At this point you should now have 3 networks/interfaces: WAN, LAN, and DMZ. The last major step is to set up firewall rules so that the network traffic is properly isolated. There are a number of ways you may go about creating firewall rules and some of the rules will depend up on which services you are planning on hosting. Also, it depends on how strict you wish to be with your network traffic. I am going to explain a basic approach that I have used to configure my networks especially as I was first learning how to write firewall rules. This approach works well when you have several VLANs/networks because you do not have to manually add a new network IP address range to isolate each network every time you create a new VLAN/network.
The general idea is this: allow specific traffic through the network interface/gateway, block any specific traffic to internal/external networks, allow specific traffic to devices on other internal networks, block access to all other internal networks to isolate network traffic, and allow anything else (to allow Internet access).
For the last “allow all other” rule, this is where you could get more strict with allowing specific types of traffic such as HTTP/HTTPS, etc. but if you access a lot of services on many different ports, it could take some time to determine everything you need to allow. This is something I want to do eventually on my network so I can lock things down tighter.
The firewall rules should be ordered from the most specific rules to least specific rules since the rules are evaluated from the top to the bottom of the list. Once a rule is triggered for a given data packet, no further rules are processed for that packet. Depending on what you are allowing or blocking, the order is very important. Sometimes you will need to allow traffic before blocking traffic while other times you will want to block traffic before allowing other traffic.
Below is a basic set of rules you may want to implement for the DMZ network which provides isolation between the DMZ and the LAN. The DMZ network cannot access anything in the LAN network so that protects you from attacks originating from the DMZ:
- Allow access to internal DNS server
- Block access to other internal/external DNS servers
- Allow access to DMZ network interface
- Block access to all other internal/private networks
- Allow access to all other traffic
For the LAN network, you need to have a similar set of rules. For illustration purposes, I am going to assume you have a web server in your DMZ that you want your LAN to access so the LAN will have an additional rule to allow that network traffic. The following rules blocks everything from the LAN network to the DMZ network except for access to the web server in the DMZ:
- Allow access to internal DNS server
- Block access to other internal/external DNS servers
- Allow access to LAN network interface
- Allow access to server in DMZ for HTTPS
- Block access to all other internal/private networks
- Allow access to all other traffic
To minimize repetition, I will only describe the DMZ rules except for the one LAN rule to access the DMZ web server since the rules are similar. You just reference a different network in the rules. So let us get started!
Allow access to internal DNS server
To allow access to your OPNsense Unbound DNS server (which is the default DNS server in OPNsense), you need to allow port 53 on the “DMZ address”. You do not have to allow access to your router’s IP which I will assume is 192.168.1.1. Since you have created separate networks, the interface IP address acts as the gateway IP address since that is what the DHCP service provides to each of its clients. The “DMZ address” in our example is 192.168.20.1, which is what you configured for the interface.
|Destination Port||53 (DNS)|
|Description||Allow internal DNS server|
Block access to other internal/external DNS servers
If you want to control access to DNS for DNS filtering/blocking, you will need to prevent rogue users or devices from using an alternate DNS server. This rule blocks all other DNS servers. For rogue users, they will be forced to use the proper DNS server and for rogue devices, they usually fall back to the default network configured DNS servers. However, there may be devices which have hardcoded Google DNS servers and if you block it, they will fail to resolve. It seems like some Google devices may fall in that category (perhaps they want to track usage…). In that situation, you will want to redirect DNS requests rather than block them. This is possible with using a NAT port forward rule. I have not tried doing this since blocking rogue DNS servers works fine for my network. Of course, keep in mind that there are other non-standard DNS ports and if DoH (DNS over HTTPS) is used, DNS queries could still get out of the network because HTTPS will normally always be allowed. This blocking is mainly for rogue devices and novice users rather than tech savvy rogue users because they could find a way around the firewall. If you have a malicious insider, you already have big problems.
|Destination Port||53 (DNS)|
|Description||Block all other internal/external DNS servers|
Allow access to DMZ network interface
This rule allows access to the DMZ network interface. You can ping the interface and if you so desire, you can also access the OPNsense web administration from the DMZ interface address (but you can of course block access with another rule, which is not a bad idea for the DMZ since you are allowing public access to your server(s)). Also, this rule is necessary because of the next firewall rule below that blocks all private networks. Without it, the network would not have Internet access since the interface/gateway IP address would be blocked (see more detailed explanation below).
|Description||Allow access to DMZ network interface|
Block access to all other internal/private networks
To isolate the DMZ network from the other internal networks, you need to block access to them. The easiest way is to block all private IP address ranges because if you add any new networks, you do not need to update your list of networks to block. This ensures that you do not forget to block any new networks so it is a good safeguard for securing your network.
Note that the DMZ network itself uses private IP addresses, but you do not have to worry about the rule blocking anything within the DMZ network itself because the traffic between devices in the same network stays in the same network. Local traffic does not need to be routed to other networks. This means you do not need to exclude the DMZ network itself when creating this rule for the DMZ network. However, you do need to allow access to the interface IP address to allow access to the Internet, which was explained in the rule above.
If you are new to networking, it is important to note that you cannot use firewall rules in your router to block access between two devices on the same network. You can only block traffic between two different networks when traffic is passing between the networks. For traffic to pass between two physical or logical networks, it must be routed – that is what routers do best!
If you want to block access between two devices on the same network, you can make use of firewalls that are installed on the devices themselves. If you are unable to install a firewall on a device, you will have to put them on separate networks to prevent access.
|Description||Block all other internal/private networks|
You may notice that for “Destination” I made use of a firewall rule alias called “PrivateNetworks”. You will not see “PrivateNetworks” as an option in your rules until you create the alias. Aliases are nice when you are reusing certain values over and over. It also helps to make the rules more readable. Aliases can help reduce the number of rules you need to create because they allow you to combine multiple values into a single alias.
To create an alias, go to the “Firewall > Aliases” page and click the “+” button in the bottom right corner of the alias list table. Enter a name such as “PrivateNetworks”. You will wan to pick “Network(s)” as the “Type”. Enter 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16 as the networks. This includes the entire IPv4 private IP address ranges.
Allow access to all other traffic
Finally, you can then allow all other traffic through which allows you to access any external network to provide Internet access. You can be more strict with this rule, but this rule will act more like a consumer router which allows you to access anything on the Internet. You could use this as a starting point and you can monitor your traffic to see which ports you are using the most and only allow those ports to lock things down further. On a DMZ network that would probably be a good idea, but if it is your gaming network, for instance, you may be annoyed if you have to allow access to every port for all your games.
|Description||Allow access to all other traffic|
And for the LAN rule…
Allow access to web server in DMZ for HTTPS
This allows any device in the LAN network to access the web server in the DMZ with the IP address 192.168.20.10. I recommend creating an alias for your server if you plan to reference it in several rules. It also makes the rules more readable as well. If you have multiple services hosted on the same server but on different ports, you can create an alias with multiple ports. You would then use the alias rather than a specific port number. Using the alias eliminates the need to create 3 separate rules for 3 different port numbers. The same approach can be taken if you have multiple web servers. You can put them all in the same rule using aliases.
|Description||Allow access to web server in DMZ network|
Now you should have a fully functioning DMZ network! Keep in mind that this configuration, while more secure than a flat/single network, is still more vulnerable to an attack than a more advanced DMZ. Your internal LAN is at a higher risk of being attacked if your only router/firewall is compromised. However, for a more advanced home network with a pretty secure platform like OPNsense that receives frequent updates, this approach may be quite adequate for your home networking needs!
